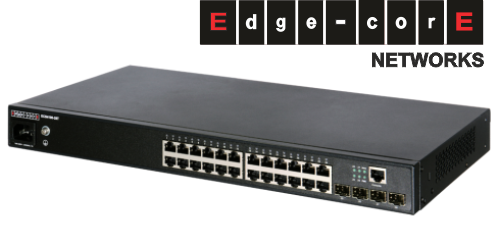

L2 Gigabit Etherenet  Access Switch ECS4100-28T with management is equipped with 24x 10/100/1000 Base-T RJ-45 ports and four 1G SFP uplink ports, supporting 100M and 1G SFP transceivers.

The series of L2 Gigabit Ethernet switches ECS4100 by Edge-Core is mainly intended for small and medium (SOHO / SMB) computer networks or camera systems, possibly also for ISP networks. Simple configuration and management of the switches is provided by the web interface, Telnet and SNMP management or access via the serial console are also available. Unit management is possible on both IPv4 and IPv6.

Switches of the ECS4100 series offer support for virtual VLAN networks (IEEE 802.1Q, up to 4 thousand active VLANs) and line aggregation (IEE 802.3ad). Spanning Tree protocols STP / RSTP / MSTP prevent loops in the Ethernet network, thus enabling the creation of redundant circular topologies. The switch is suitable not only for data transfer, but also for voice (VoIP) and video (multicast, IP-TV, VoD) thanks to the support of QoS and IGMP Snooping functions.

There are 8 HW priority queues to ensure quality of service (QoS). Data classification is possible according to the IEE 802.1p and DSCP standard. In terms of security, the switch offers user authentication based on MAC address, web authentication, as well as Port-based and MAC-based authentication according to IEE 802.1X (RADIUS).
